SKX-2000A 心电信号模拟仪中文介绍 SKX-2000A ECG Simulator English Introduction
功能特点： Functional Features:
★ 10个万用连接头，可以连接任意心电类产品。 ★ Ten universal connectors, capable of connecting any electrocardiogram-related products.
★ 12导联同步心电信号输出，输出不同的12导心电波形。 ★ 12-lead synchronous electrocardiogram signal output, providing different 12-lead electrocardiogram waveforms.
★ 内置高性能CPU，可以模拟输出标准心率 ★ It is equipped with a high-performance CPU, which can simulate and output the standard electrocardiogram
为60bpm的心电波形。 waveform with a heart rate of 60 beats per minute.
★ 内置大容量锂电池，外置专用充电器。 ★ Built-in large-capacity lithium battery, with a dedicated external charger.
★ 系统具有自动休眠功能，电池过冲、过放保护功能。 ★ The system has the functions of automatic sleep mode and protection against battery overcharging and
overdischarging.
使用说明： Functional Features:
1）本充电器通过各种认证，输出电压4.2V，标准电流0.5A， 1) This charger has passed various certifications. It outputs a voltage of 4.2V, with a standard current of 0.5A and a
极限电流0.6A，带有完善的过流、短路保护功能，充满后 maximum current of 0.6A. It is equipped with complete overcurrent and short-circuit protection functions. After being
无需立即切断电源，不会过充。用料扎实，摒弃了低档电 fully charged, there is no need to immediately cut off the power supply, and it will not overcharge. The materials used
源用的13001（0.5A）三级管，直接采用了13003（1.5A） are solid, and it has abandoned the 13001 (0.5A) transistor used in low-end power supplies, directly adopting the
三极管，使得功率裕量非常足，即使在极端条件下也不会 13003 (1.5A) transistor, which ensuresa very sufficient power margin. Even under extreme conditions,
出现故障。 it will not malfunction.
★ 输出电压：4.2V ★ Output voltage: 4.2V
★ 输出电流：500mA（3.5圆孔插头） ★ Output current: 500mA (3.5 round-hole plug)
★ 输入电压：110V-240V ★ Input voltage: 110V - 240V
2）输出2根线，输出亮绿灯为正常待机状态，充电时为红灯， 2) Two output wires are provided. The green light being on indicates a normal standby state, while the red light is on
当充电池电压达到4.16V左右红灯转为绿灯，此时充电器 during charging. When the battery charging voltage reaches approximately 4.16V, the red light changes to green.
并非完全停止充电，而是以小电流涓流继续充电，最高 At this point, the charger is not completely stopping the charging process; instead, it continues charging with a
截至电压为4.21V。该充电器带全套保护，所以怎么接线 small current in a trickle mode, with the maximum cutoff voltage being 4.21V. This charger comes with a complete
短路都不会损坏充电器的。 set of protection, so even if there is a short circuit in the wiring, the charger will not be damaged.
3）指示灯状态表示： 3) Indicator light status indication:
★ 绿灯为待机（充电时为4.16V涓流状态） ★ The green light indicates standby (it is in a 4.16V trickle charge state when charging).
★ 红灯为充电！ ★ Red light means charging!
★ 闪绿灯为过压4.21V ★ The flashing green light indicates overvoltage of 4.21V.
★ 闪红灯为电池故障或短路 ★ The flashing red light indicates a battery failure or short circuit.
4）充电器带短路，过流过压，正负极反接短路保护。 4) The charger has short circuit protection, overcurrent and overvoltage protection, as well as protection against reverse
connection of positive and negative poles.
注意： Functional Features:
★ 本模拟器上电后自动产生正常心电波形，心率 ★ After powering on this simulator, it automatically generates a normal electrocardiogram waveform with a heart rate
为60bpm。 of 60 beats per minute.
★ 为防止用户在使用过程中忘记关闭电源，系统设计为当24个小 ★ To prevent users from forgetting to turn off the power during use, the system is designed such that after 24 hours,
时 后，CPU将进入待机状态，以便节电，再次开机将正常工作。 the CPU will enter a standby mode to save energy. When the system is restarted, it will function normally.

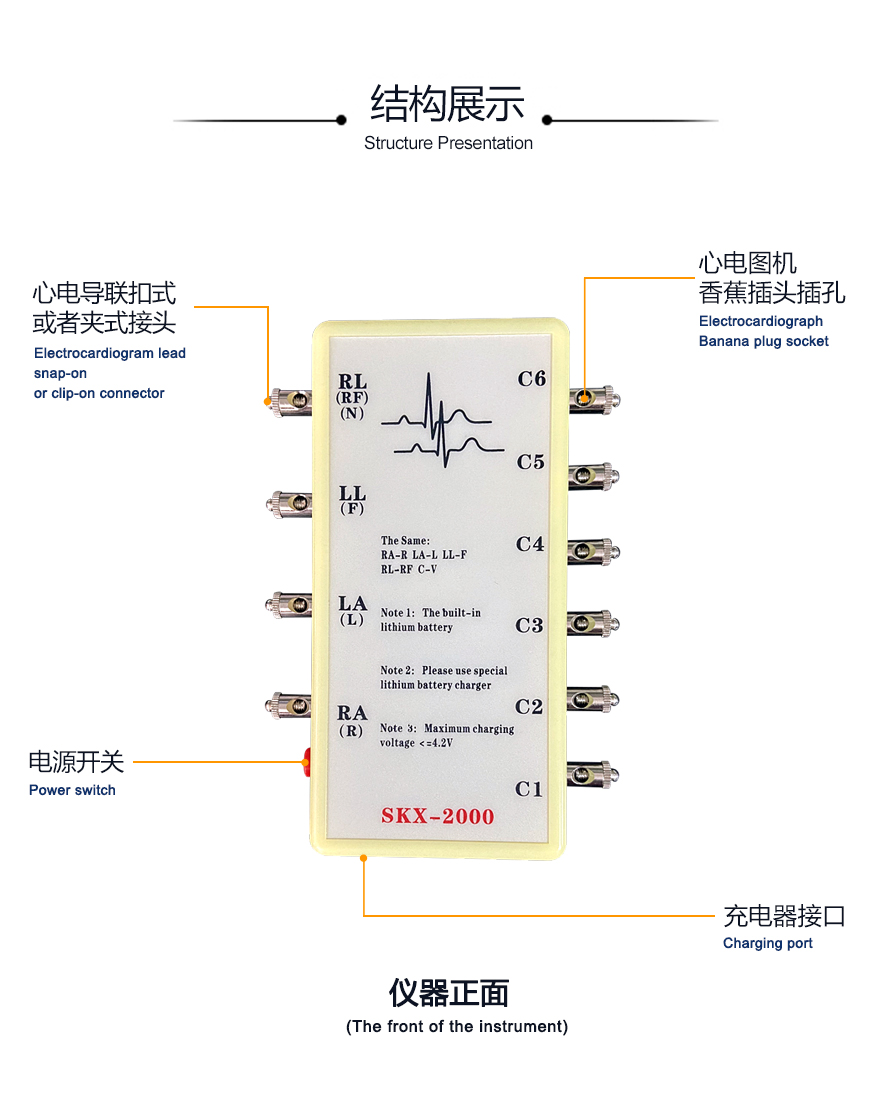

★ 心电图机接法： ★ Electrocardiograph connection method:
RA-右手，LA-左手，LL-左脚，RL-右脚，C1-C6胸导 RA - Right hand, LA - Left hand, LL - Left foot, RL - Right foot, C1-C6 chest leads
★ 监护仪接法：RA-右手（白色），LA-左手（黑色）， ★ Monitoring device connection method: RA - Right hand (white), LA - Left hand (black),
LL-左脚（红色），RL-右脚（绿色），C1-C6胸导（棕色） LL - Left foot (red), RL - Right foot (green), C1-C6 chest leads (brown)
★ 三导联接法： ★ Three lead connection method:
RA-右手（白色），LA-左手（黑色），LL-左脚（红色） RA - Right hand (white), LA - Left hand (black), LL - Left foot (red)
★ 欧标对应接法： ★ European standard corresponding connection method:
L-LA R-RA RF(N)-RL F-LL C-V L-LA R-RA RF(N)-RL F-LL C-V
