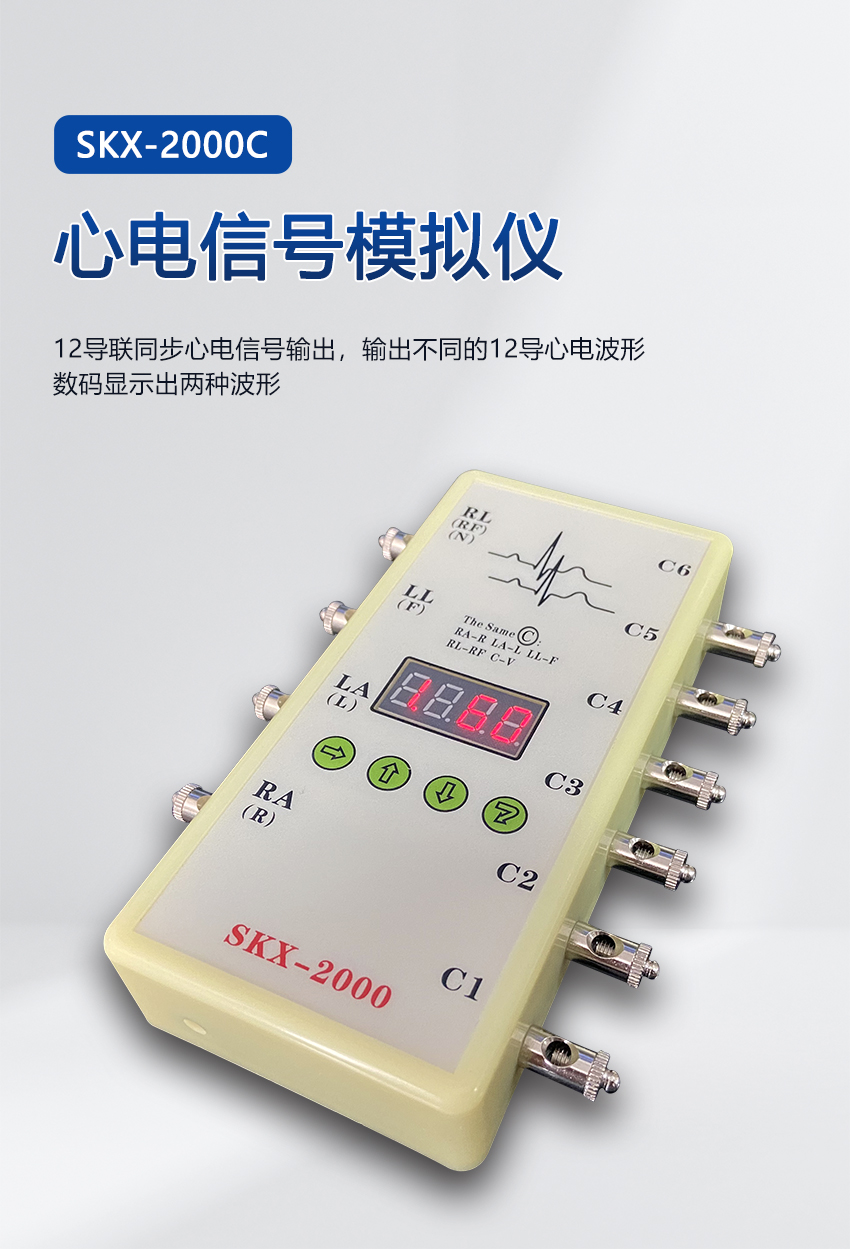

SKX-2000C数码显示出2种波形

SKX-2000C数码显示出2种波形

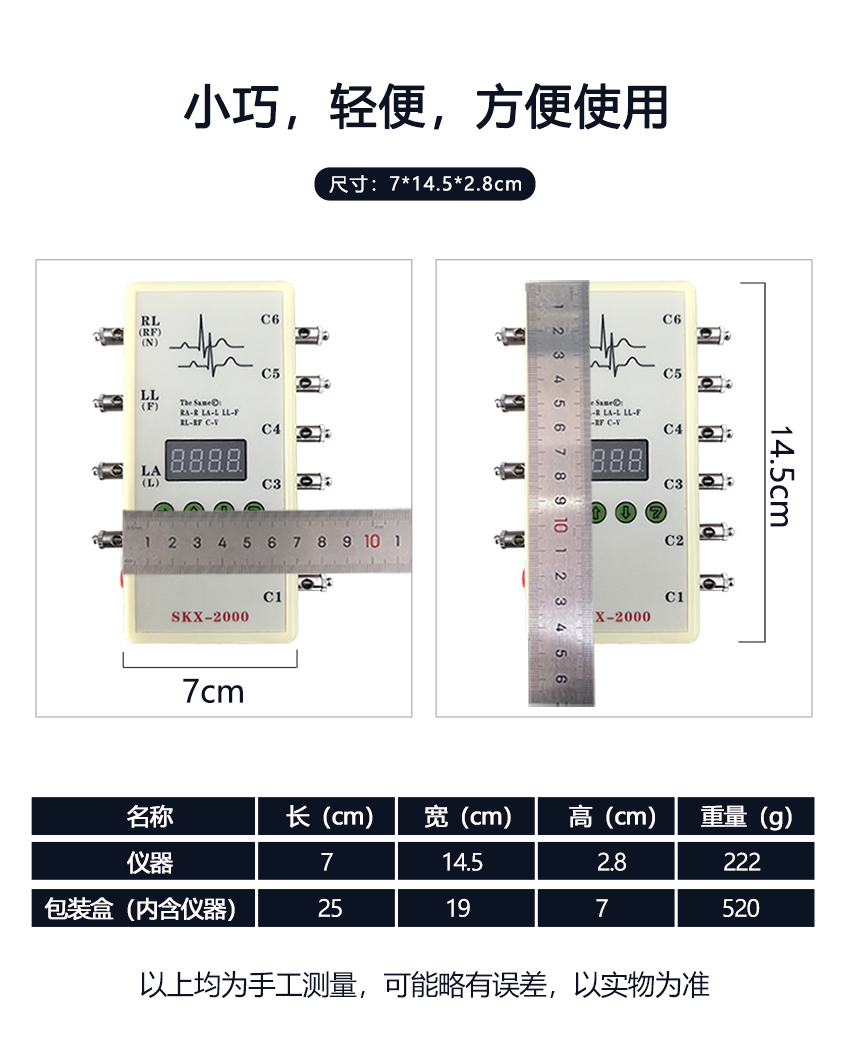

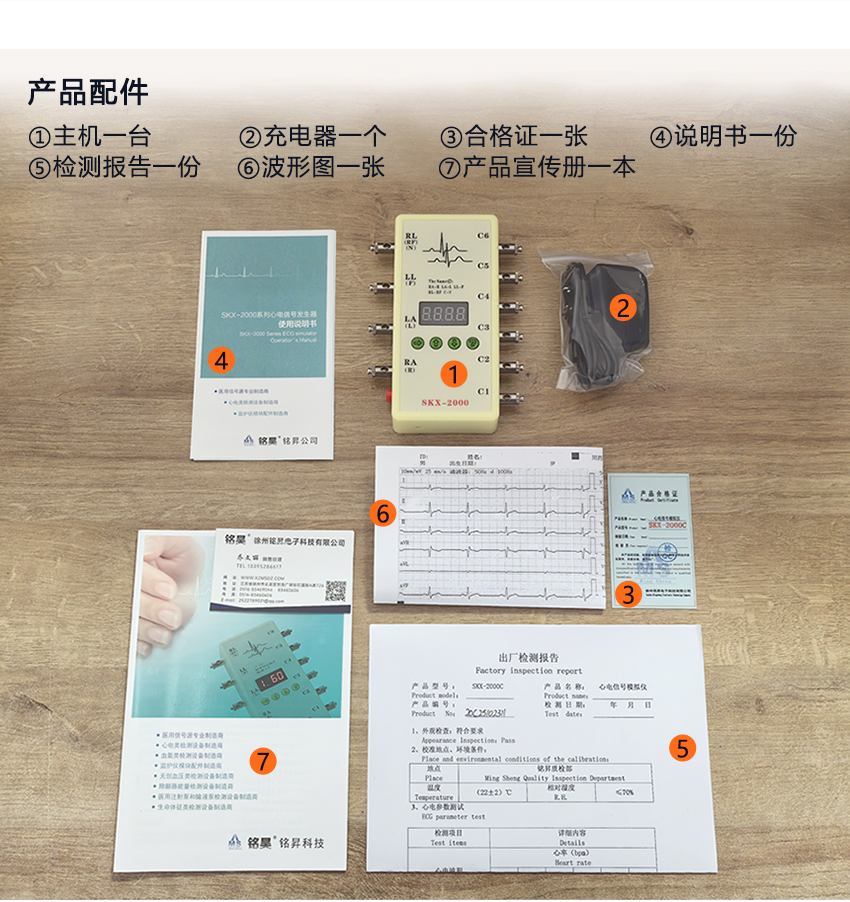

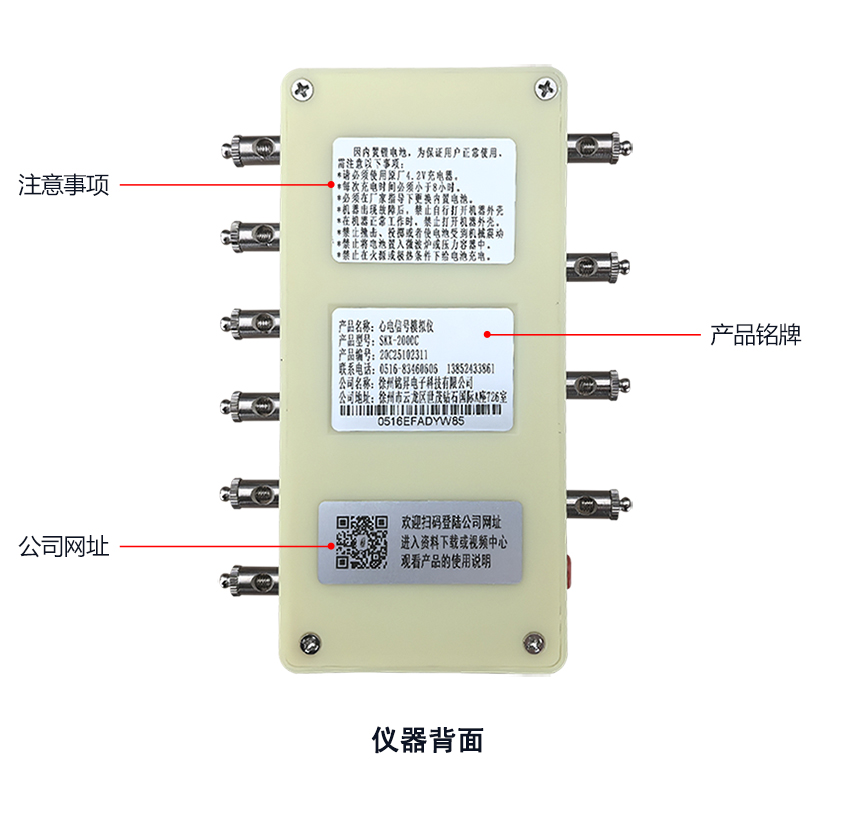

SKX-2000C心电信号模拟器使用说明

本模拟器可以产生如下波形,第一位代码代表如下波形

   ◆ 正常的心电波形

◆ 正负三角波形

          ◆ 设置信号的幅度大小

注意:

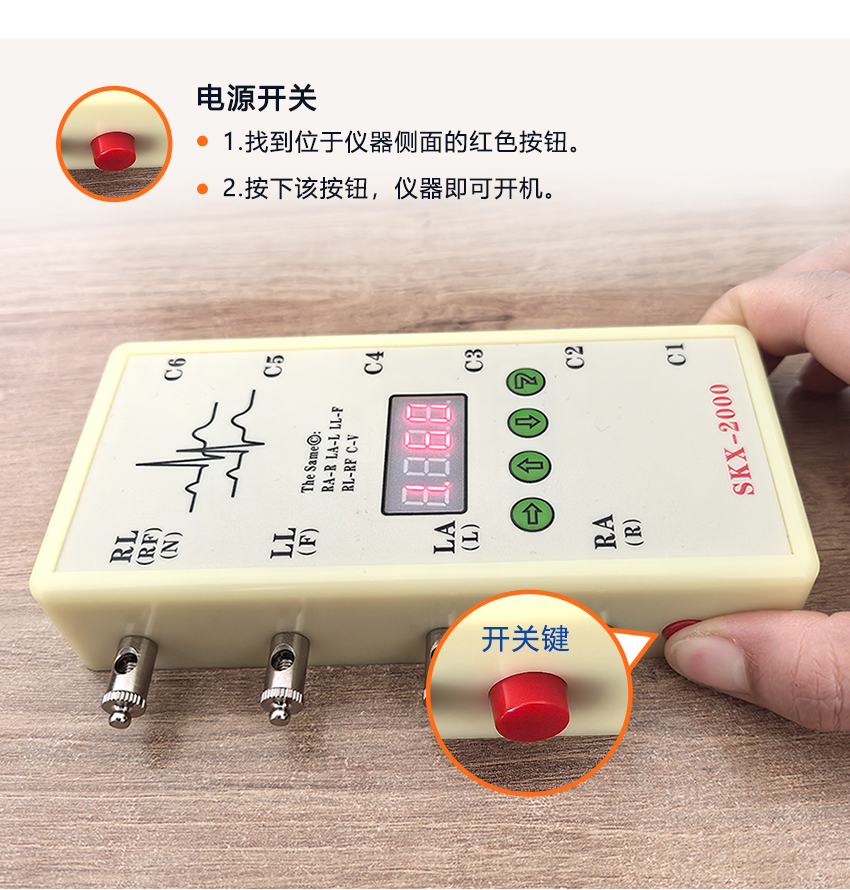

1、  本模拟器上电后自动产生波形1的正常心电波形。

2、  模拟器的LED显示管,为防止用户在使用过程中忘记关闭电源,系统设计为当24个小时内没有操作按键时,CPU将进入待机状态,以便节电,再次开机将正常工作。按任意按键则计时归零。

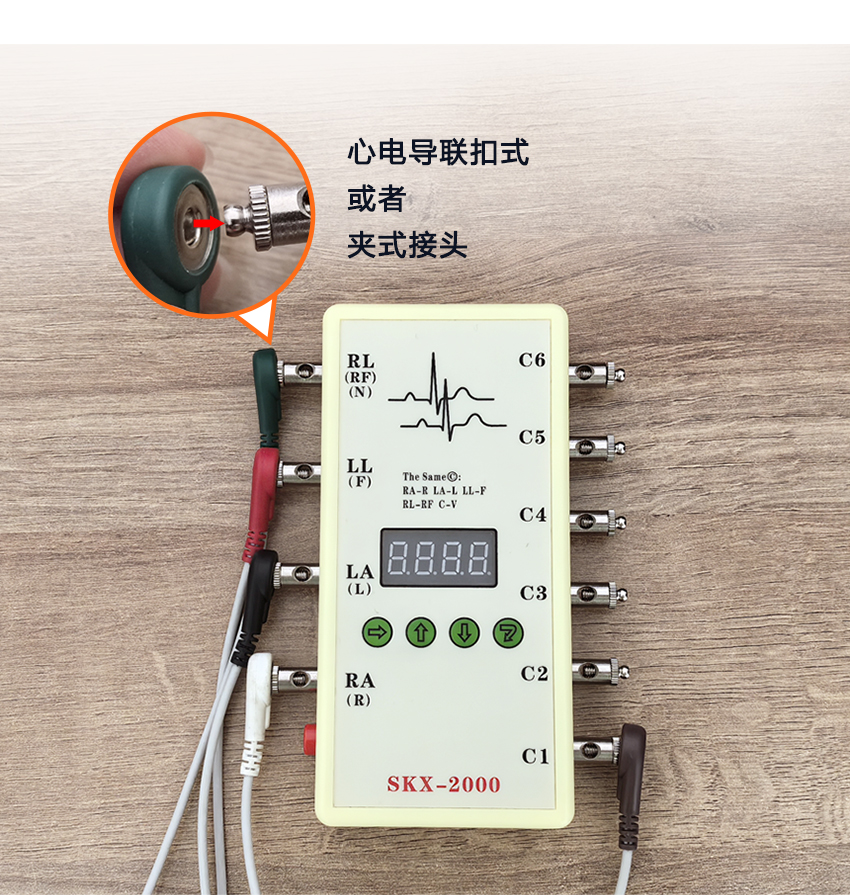

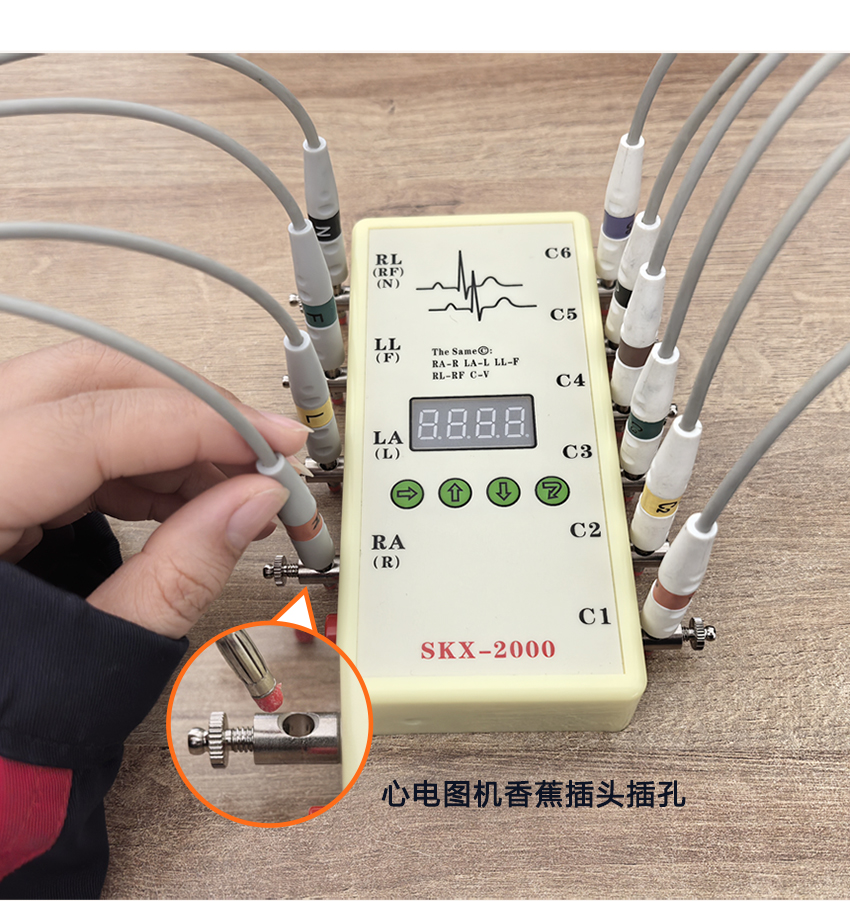

3、  心电图机接法:RA-R(右手),LA-L(左手),LL-F(左腿),RL-RF(右腿),C1—C6胸导

4、  监护仪接法:RA-右手(白色),LA-左手(黑色),LL-左脚(红色),RL-右脚(绿色),C1—C6胸导(棕色)

5、  三导联接法:RA-右手(白色),LA-左手(黑色),LL-左脚(红色)

6、  欧标对应接法:L-LA  R-RA  RF(N)-RL  F-LL  C-V

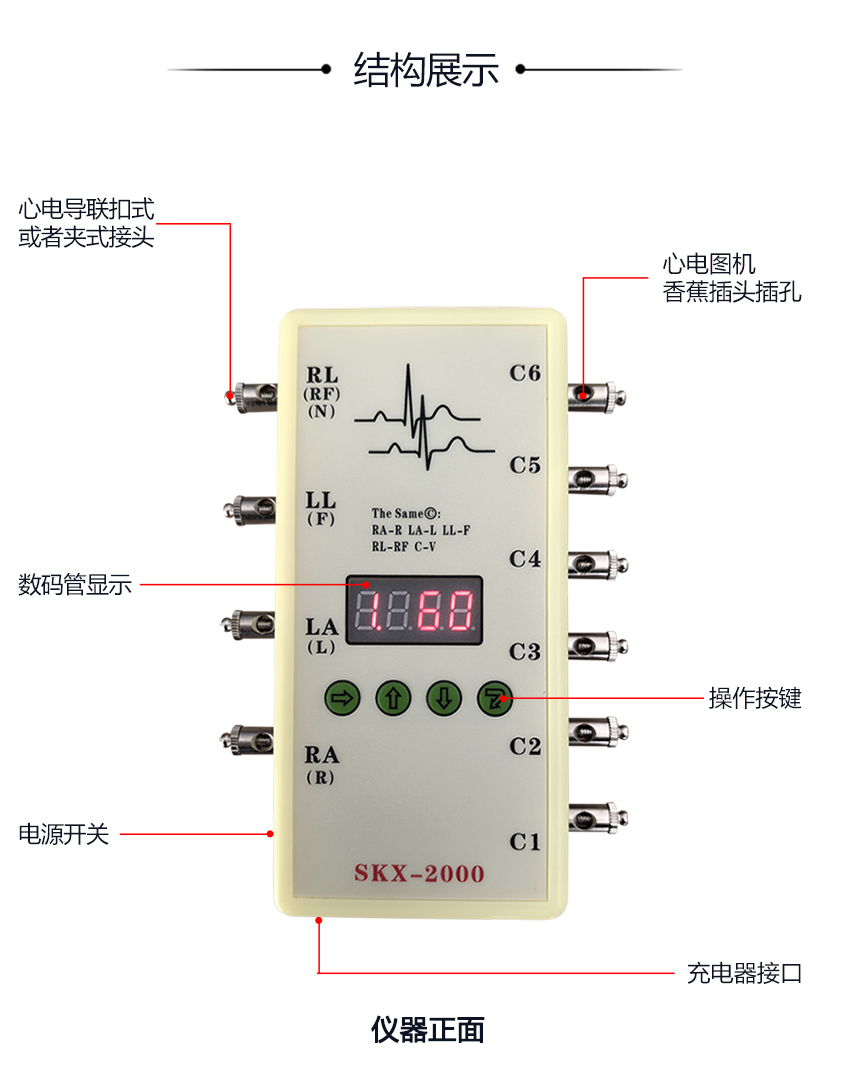

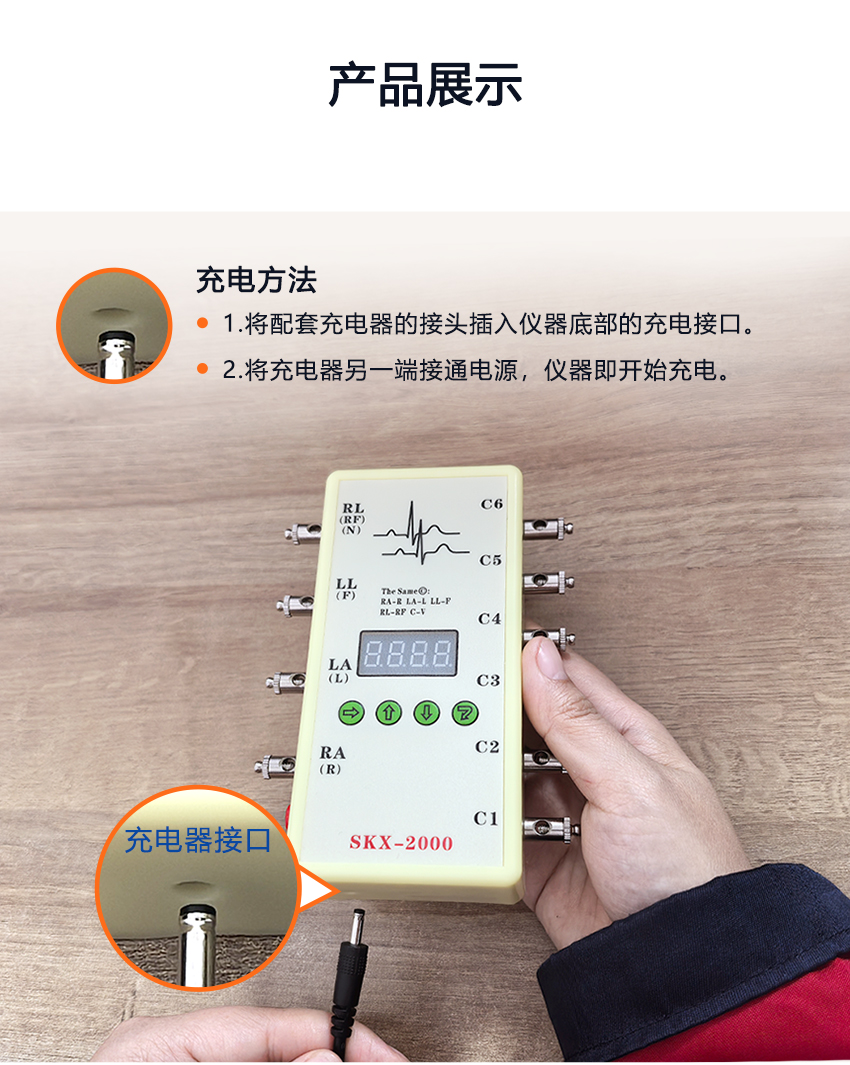

按键说明

一共有四个按键,依次为选择键、增加键、减小键、确认键,另外还有一组组合键

选择键

此按键用来选择要改变的参数,共有4个LED管来显示4个代码,分别代表显示的内容,

1代表波形代码,2-4代表要更改的参数(2是数值的百位,3代表十位,4代表个位)

LED管右下脚的亮点,表示现在选择的内容;可以进行更改。

增加键

当使用选择键选择好更改内容后,使用此键进行参数更改。

减小键:

当使用选择键选择好更改内容后,使用此键进行参数更改。

确认键

当参数更改完毕后,此键确认后将确认参数的更改,并产生相应的波形。

组合键

按下选择键的同时,再按下确认键,松开确认键,松开选择键,这时表示选择了一次组合键,再次按下确认键后将显示不同的内容。

分别说明说用各个波形的操作方法:

1、  正常心电波形:

★  心率设置范围:10-200bpm;(初始数值:60 bpm)

★  信号幅度固定。

2、  正负三角波形:

★  频率范围:10-300bpm;(初始数值:75 bpm)

★  幅度范围:0.1-4Mv(10:0.1mV ,400:4mV);

★  2种模式,模式一:正向波形,模式二:负向波形;通过组合键进行选择。

8、  信号幅度设置:

★  幅度范围:0.1mV-4mV(10:0.1mV ,400:4mV);(初始数值:100)

★  请注意,此幅度设置将影响到所有波形。


 心电信号模拟仪:SKX-2000A

 心电信号模拟仪:SKX-2000C

 心电信号模拟仪:SKX-2000C+

 心电信号模拟仪:SKX-2000D

 心电信号模拟仪:SKX-2000D+

 心电信号模拟仪:SKX-2000G

 心电信号模拟仪:SKX-2000G+

 心电信号模拟仪:SKX-2000SUP

 心电信号模拟仪:SKX-2000SUP+

 SKX-2000   说明书下载

 SKX-2000+   说明书下载

 SKX-2000   操作视频

 SKX-2000+ 操作高清视频


SKX-2000C ECG simulator use
The simulator can produce the following waveforms, the first waveform as a code representing
1, the normal ECG waveform
2, positive and negative triangular waveform
3, set the signal amplitude magnitude
Note:
1, the simulator automatically generated after power waveform a normal ECG waveform.
2, the simulator LED display tube, to prevent users forget to turn off the power during use, system design within 24 hours of when the button is not operated, CPU will enter standby for power saving, re-boot will work. Press any button and the time to zero.
3, ECG connection: RA-R (right), LA-L (left), LL-F (left leg), RL-RF (right leg), C1-C6 chest leads
4, the monitor connection: RA-hand (white), LA-left (black), LL-left (red), RL-foot (green), C1-C6 chest leads (brown)
5, three lead connection method: RA-hand (white), LA-left (black), LL-left (red)
6, corresponding to European standard connection method: L-LA R-RA RF (N)-RL F-LL CV
Key Description
A total of four buttons, followed by selection keys to increase the key, down key, the Enter key, in addition to a set of key combinations
Select button:
This button is used to select the parameter to be changed, a total of four LED tubes to display the four codes represent the content displayed
A code representing the waveform ,2-4 represents a parameter to change (2 is the value one hundred, three on behalf of ten, four representatives bits)
LED tube right lower leg of the highlights, which means that now the selected content; can be changed.
Increase key:
When using the Select button to select a good to change the content, use this key parameter changes.
Decrease key:
When using the Select button to select a good to change the content, use this key parameter changes.
Enter key:
When the parameter change is completed, this will confirm button to confirm changes to the parameters and generate the corresponding waveform.
Key combinations:
Press the Select key, and then press the Enter key, release the Enter key, release the Select key, then select a key combination represents, press the Enter key will display different content.
Instructions say to use the various waveforms, respectively, the method of operation:
A normal ECG waveform:
★ heart rate setting range :10-200bpm; (initial value: 60 bpm)
★ signal amplitude fixed.
2, positive and negative triangular waveforms:
★ Frequency range :10-300bpm; (initial value: 75 bpm)
★ amplitude range :0.1-4Mv (10:0.1 mV, 400:4 mV);
★ 2 modes, Mode 1: positive waveform Mode 2: Negative waveform; through a combination of keys.
8, the signal amplitude settings:
★ amplitude range: 0.1mV-4mV (10:0.1 mV, 400:4 mV); (initial value: 100)
★ Please note that this amplitude settings will affect all waveforms.
